Message Manager for Industrial Communication


Discontinued: No new product for sale. More Info

The ProSoft Technology inRAx Message Manager is a single-slot solution that connects and transfers Factory and Plant Process Automation monitoring and control data between islands of automation across diverse platforms, networks and protocols.

The inRAx Message Manager is an easy-to-use data transfer engine for the ControlLogix 1756 platform, supporting Rockwell Automation Programmable Logic Controller (PLC) and Programmable Automation Controller (PAC) network protocols, as well as platforms and devices that use Siemens Industrial Ethernet and Modbus TCP/IP protocols.

The ILX56-MM makes it easy for System Integrators and End Users to reduce the engineering effort required to coordinate data transfers between multiple control systems in Factory and Plant Automation applications. The Message Manager simplifies and streamlines data connection and transfer operations by enabling PLC/PAC data exchanges without the need for additional message-specific PLC programming.


Click on image(s) to enlarge
Drag with the mouse. Click for close.

Features and Benefits

The Message Manager acts as a communication interface as well as a message transaction engine. The configuration utility is web-based, built into the module, used for module and network configuration, diagnostics, and uploading/downloading. PLC to PLC data transfers no longer require message programming. Setting up these transfers can be done at one location for up to 16 controllers, including various networked Rockwell Automation controllers as well as PLC/PACs that reside on either Modbus TCP/IP or Siemens Industrial Ethernet networks.


  • Built-in web based configuration utility
  • Requires Internet Explorer version 7 (or higher) for full implementation
  • Single slot - 1756 backplane compatibility
  • Remove and Insert Under Power - RIUP
  • Local or Remote rack
  • Scrolling display for status and diagnostics

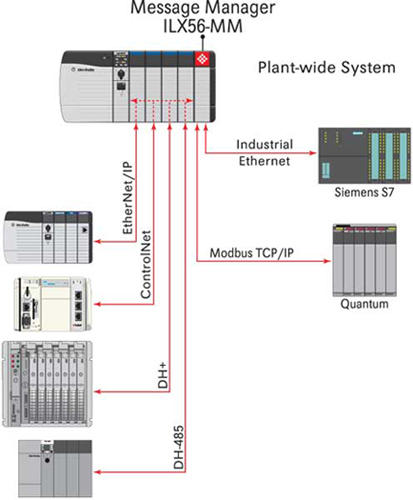

Protocols Supported: Modbus TCP/IP and Siemens Industrial Ethernet supported via the built-in Ethernet ports. EtherNet/IP, ControlNet, Data Highway+ (DH+) and Data Highway 485 (DH485) are supported through Rockwell Automation (RA) 1756 communications bridge modules.

Data Transfers: Transfer data between up to 16 individually-configurable communications Interface connections

Interfaces: Choose RA, Modbus TCP/IP, or Siemens IE protocol for each Interface

Tags: Browse and use tag names from any RA PAC in a ControlLogix local or remote chassis or any Allen-Bradley PLC or RA PAC connected across supported bridged networks. Create user-defined Tags for Modbus and Siemens data addresses.

Transfer Lists: Create data exchange lists using source and destination Tags

Triggers: Define events that will cause one or more Transfer Lists to be executed. Triggers can be based on Tag values or scheduled time intervals.

Security: No login required to view configuration information. Must log in to make configuration changes. PROJECT-level users may make configuration changes and start/stop data transfer operations (i.e. switch between RUN and IDLE). ADMINISTRATOR-level users may make Project -level changes as well as assign usernames, passwords, and security access levels for all users.

Internal Date and Time: Can be set manually or synchronized with ControlLogix or CompactLogix. The frequency of synchronization can be: No frequency, Hourly, Daily, Every 8 hours, or Every 12 hours.

Configuration Data: Can be saved offline or saved to the on board compact flash card.

Configuration Utility: Contains built-in Help functions. On-Line configuration only

Setup Mode: Setup Mode temporarily sets the Message Manager network port settings to their default values. Setup Mode also allows you to reset the default administrative password.

Operational Modes:

  • IDLE; Not running triggers (configuration mode)
  • RUN; Running triggers (normal operation)
  • STOP; Error state (check active error list, correct errors listed, then return to run)





Rechargeable Lithium Vanadium Pentoxide


Precision RTC accurate to +/- 4 minutes/year


Onboard 4-Character Alpha-numeric display


Operating: 0 to 60 deg. C / 32 to 140 deg. F

Storing: -40 to 80 deg. C / -40 to 176 deg. F

Form Factor

Single-Slot ControlLogix Module

Power Ratings

1000mA @ 5 VDC

5-Watts Max. Power Consumption
