What are the dimensions of an In-Chassis ControlLogix I/O card?
Article Number: 457 | Rating: Unrated | Last Updated: Thu, Jul 17, 2014 at 4:34 PM
In-Chassis ControlLogix modules occupy 1 slot in the chassis.  It has the same dimensions as an Allen Bradley ControlLogix processor or I/O card.

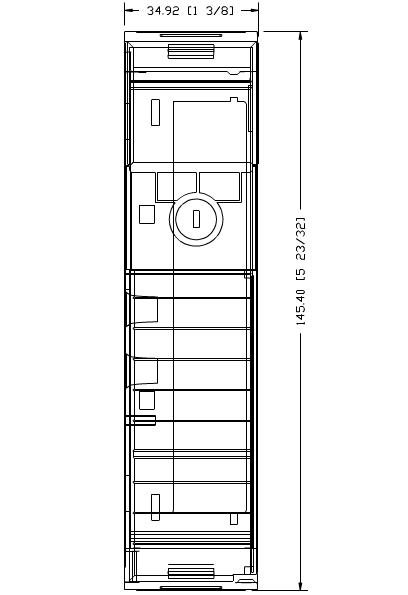

Attached are drawings with the dimensions.
