Universal QuickServer

Universal QuickServer Gateway

PS-QS-2x10-F

The QuickServer line of communication gateways are designed to link building automation driven networks with industrial control networks. The QuickServer gateways are available with limits of up to 250, 500, or 1000 points of application data and connect building automation networks such as BACnet™ MS/TP, BACnet/IP, or JCI Metasys™ N2 with industrial control networks such as EtherNet/IP™, Modbus® RTU, or Modbus TCP/IP.

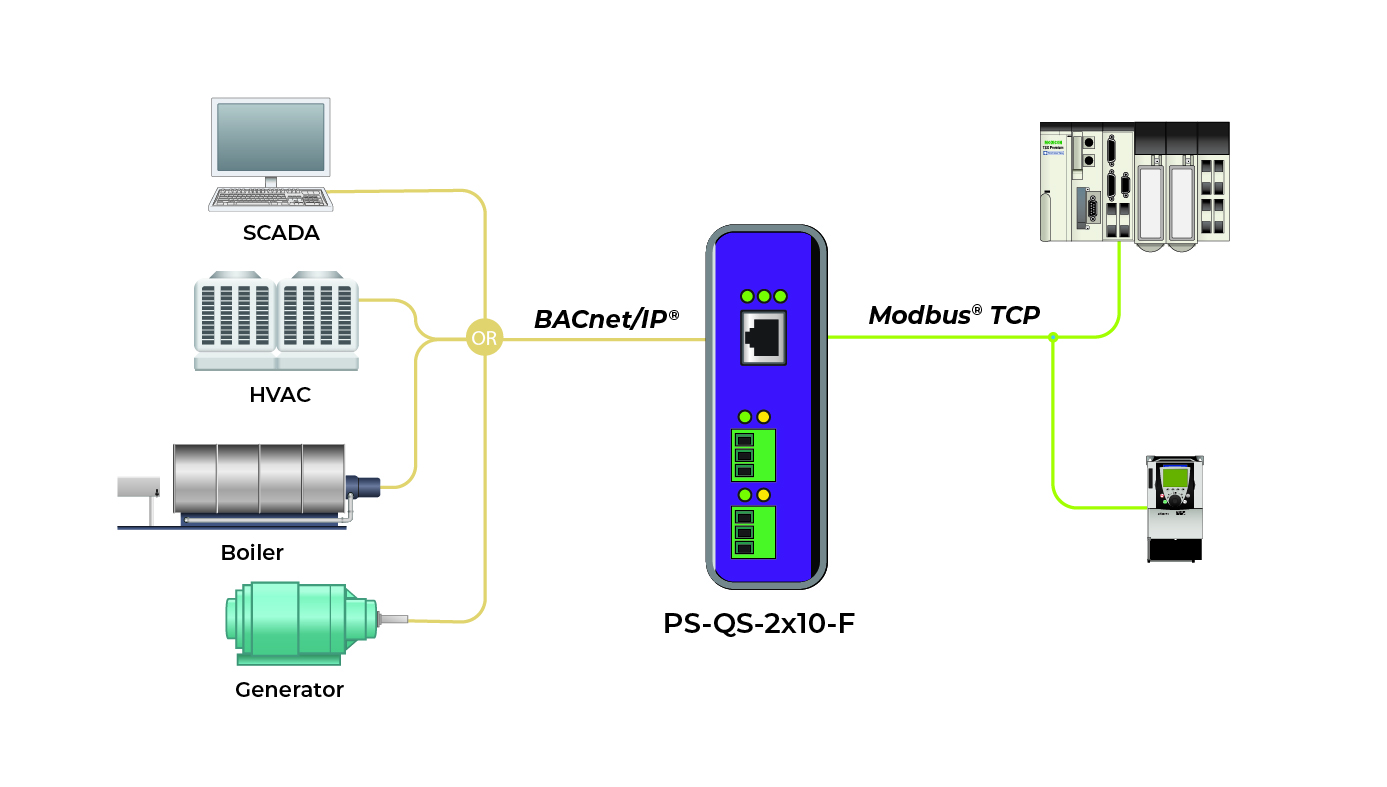

Architectures

Click on image(s) to enlarge
Drag with the mouse. Click for close.
Drag with the mouse. Click for close.

Features and Benefits

  • Ability to interface up to 250, 500 or 1000 points of common BAS protocols depending on gateway
    • EtherNet/IP™ to BACnet™ MS/TP or BACnet/IP
    • Modbus® RTU or TCP/IP to BACnet MS/TP or BACnet/IP
    • EtherNet/IP™, Modbus® RTU or Modbus TCP/IP to JCI Metasys™ N2
    • and more...
  • Multi-configuration capability; specific configurations selectable via software
  • DIN rail mount included with gateway

Specifications

Field Connections

  • Ethernet: 10/100 RJ45
  • Serial Ports (2):
    • (1) RS-485/RS-232
    • (1) R485

Hardware

Environment

  • Operating temperature: -20°C to 70°C (-4°F to 158°F)
  • Relative humidity: 10% to 95% RH, with no condensation

Power Requirements

  • 9 to 30 VDC or VAC
  • Current draw 250mA @ 12V

Other

  • Dimensions (H x W x D): 4 x 1.1 x 2.7 in (10.16 x 2.8 x 6.8 cm)

Certifications

UL Test report 154.13 kB Last Modified 11/03/2020
Declaration of Conformity (RoHS\CE) 426.18 kB Last Modified 12/17/2020
Declaration of REACH Compliance 593.33 kB Last Modified 12/17/2020
UKCA Certification 327.80 kB Last Modified 05/12/2022
BACnet Conformance Certificate 1.15 MB Last Modified 10/09/2024
