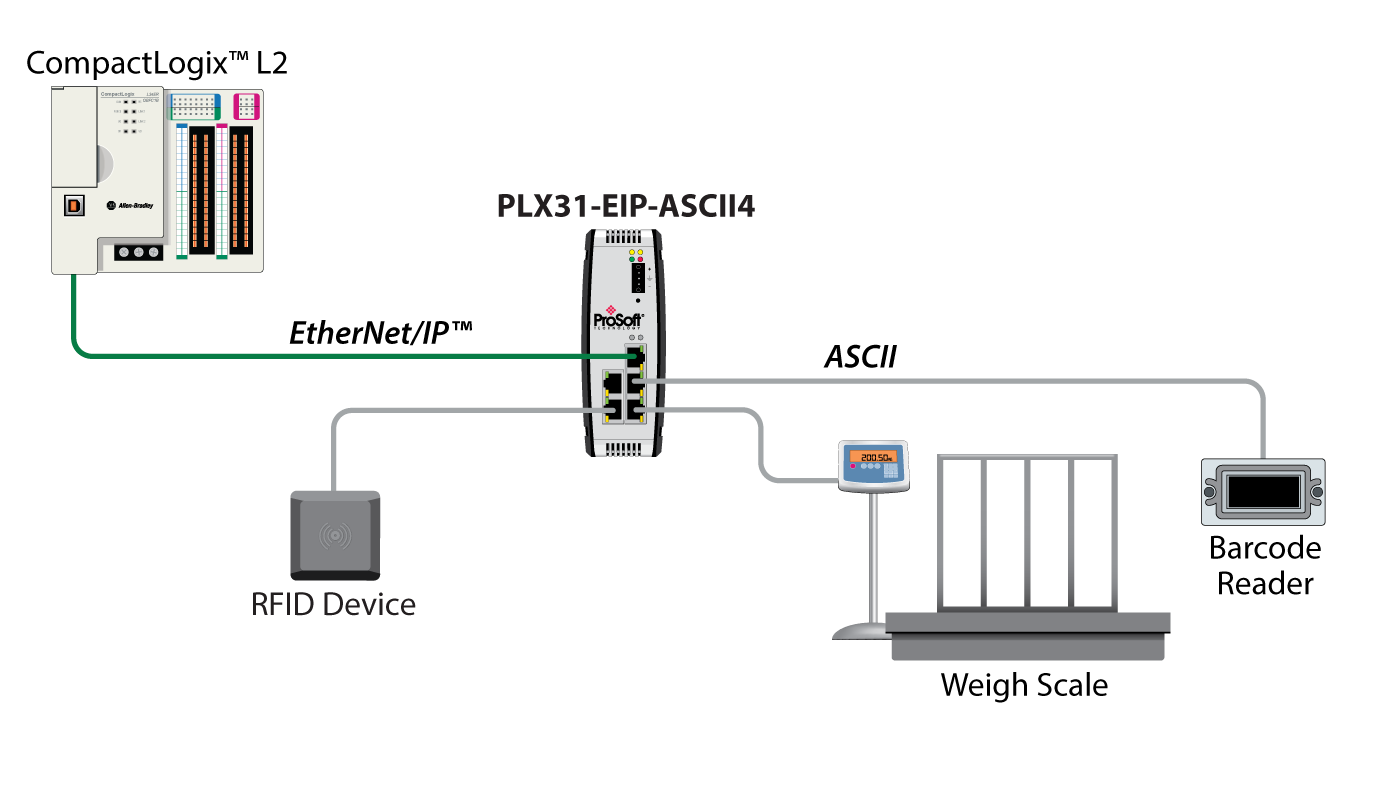

ProSoft Technology’s EtherNet/IP™ to ASCII four-port communication gateway allows high-speed bi-directional data transfers between EtherNet/IP™-enabled PACs and ASCII devices such as weigh scales and barcode readers. The EtherNet/IP™ protocol driver supports the explicit messaging implementation. The gateway is userconfigurable as both a client and a server.
EtherNet/IP™ PACs include Rockwell Automation® ControlLogix® and CompactLogix™, as well as several Schneider Electric® controllers. Applications for this module are found in most industries, especially manufacturing, oil & gas, electrical power and food processing.
The gateway has several features that allow for simplified integration, reduced commissioning time and optimized performance.
EtherNet/IP™ Specifications
Specification |
Description |
Number of Class 3 Server Connections |
5 |
Supported PLC Types |
PLC2, PLC5, SLC, CLX, CMPLX, MICROLX |
Supported Message Types |
PCCC and CIP |
Class 3 Client Connections |
Connected: 2 |
Number of Class 1 I/O Connections |
4 |
I/O connection sizes |
248/248 |
Max RPI time |
5 ms per connection |
CIP Services Supported |
0x4C - CIP Data Table Read |
Command List |
Support for 100 commands per Client, each configurable for command type, IP address, register to/from addressing and word/bit count |
Command Sets |
PLC-2/PLC-3/PLC5 Basic Command Set |
ASCII Specifications
Transmit and Receive Buffer Size |
255 byte Transmit character length with 0 to 65535 millisecond delay between each transmitted character |
Specification |
Description |
Power Supply |
24 VDC nominal 10 to 36 VDC allowed Positive, Negative, GND Terminals |
Current Load |
24 VDC nominal @ 300 mA |
Operating Temperature |
-25°C to 70°C (-13°F to 158°F) |
Storage Temperature |
-40°C to 80°C (-40°F to 176°F) |
Shock |
IEC 60068-2-27; 15G @ 11ms, 3-Axis (Operational) |
Vibration |
IEC 60068-2-6; 5G @ 10 to 150 Hz |
Relative Humidity |
5% to 95% RH with no condensation |
Dimensions (H x W x D) |
5.38 x 1.99 x 4.38 in 13.67 x 5.05 x 11.13 cm |
LED Indicators |
Configuration (CFG), Error (ERR), Power (PWR), Hardware Fault (FLT), Network Status (NS), EtherNet/IP™ Class I or Class III Connection Status (EtherNet/IP Only) Module Status (MS), Module Configuration Status (EtherNet/IP Only) Ethernet Communication Port Link/Activity, and 100 mbit Serial Communication Port Receive (RX) and Transmit (TX) |
Ethernet Port |
10/100Mbit half-duplex RJ45 Connector Electrical Isolation 1500 Vrms at 50 to 60 Hz for 60 seconds, applied as specified in section 5.3.2 of IEC 60950: 1991 Ethernet Broadcast Storm Resiliency is less than or equal to 5000 [ARP] frames-per-second and less than or equal to 5 minutes duration |
Number of Serial Ports |
4 |
Serial Port Isolation |
2500 Vrms port signal isolation per UL 1577 serial port communication signal uses RF (Radio Frequency) modulation signal as isolation media, IC chip model is SiliconLabs Si844x (Si8440,Si8441,Si8442) |
Shipped With Each Unit |
2.5 mm screwdriver |
