PROFINET Controller Module for ControlLogix®
ILX56-PNC
The ILX56-PNC PROFINET Controller module allows Rockwell Automation® ControlLogix® processors to communicate on a PROFINET RT protocol network with up to 64 PROFINET devices.
The module provides the ability to pass up to 4096 bytes of input and output data as high-speed cyclic I/O data on a PROFINET RT network.
Combined with the use of multiple I/O connections back to the ControlLogix processor, this module provides data update rates that will meet even the most demanding of PROFINET RT applications.
In addition, with the use of the PLX50 Configuration Utility you have advanced features such as custom-built Add-On Routines and User Defined Data Types (UDTs) to minimize the amount of time and effort in getting a ControlLogix® PAC operating on a PROFINET RT network.

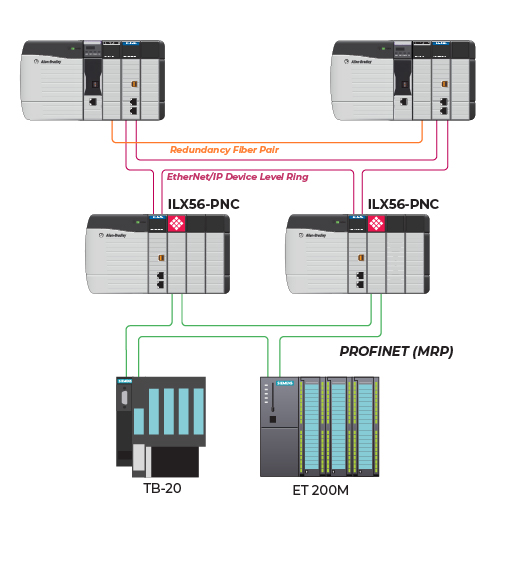

Architectures
|
Features and Benefits
- PROFINET RT Controller mode allows communications with up to 64 devices with a max of 4096 bytes of cyclic I/O data
- Supports Acyclic parameter data exchange
- Add-On Profile and custom Add-On Routines provided to allow for seamless integration to Studio 5000
- Media Redundancy Protocol (MRP) as well as PROFINET Controller S2 Redundancy
Specifications
PROFINET RT Controller Specifications
| Specification |
Description |
| Controller Support |
Cyclic data exchange with up to 64 PROFINET Devices |
| Input/Output |
Maximum 1440 Bytes per device |
| Input Data |
Maximum of 4096 bytes of Input Data per module |
| Acyclic Data |
Parameter Data via Read/Write Record |
| Status Data |
88 Bytes |
| Output Data |
Maximum 4096 Bytes of Output Data per module |
| Redundancy |
Higher availability through Media Redundancy Protocol (MRP) ring redundancy |
Hardware
| Specification |
Description |
| PROFINET Interface |
10/100/1000 MB with MRP |
| Power Supply |
600 mA @ 5Vdc |
| Dimensions |
Standard 1756 Single-slot module |
| Burst |
EN 61000-4-4, 2 kV, 5 kHz |
| Surge |
EN 61000-4-5, 2 kV Common mode, 1 kV differential mode |
| ESD |
EN 61000-4-2, 4 kV contact, 8 kV air, 4 kV indirect |
| Radiated/Conducted Immunity |
EN 61000-4-3, 10 V/m, 30...1000 MHz, 80% AM, 1 kHz sine wave |
| Radiated/Conducted Emission |
EN 55011 Class A |
| Vibration/Shock (operating) |
IEC 600068-2-6, 10-500 Hz, ± 0,75 mm, ± 2 g, 1 Octave/min |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Relative Humidity |
5 to 95% (non-condensing) |
| Minimum Software Rev |
Studio 5000 v30 and above |
Certifications
| PROFINET Certificate | 182.29 kB | Last Modified 02/11/2025 |
| UL/cUL | 289.17 kB | Last Modified 01/09/2025 |
| CB Safety | 112.66 kB | Last Modified 03/04/2025 |
| ATEX Letter of Conformity | 100.42 kB | Last Modified 01/09/2025 |
| Declaration of Conformity (RoHS/CE) | 157.95 kB | Last Modified 01/09/2025 |
| Declaration of REACH Compliance | 129.13 kB | Last Modified 01/09/2025 |
