Control Net Router

ControlNet Router

A-CNR

The ControlNet Router provides an efficient method of bridging between ControlNet and Ethernet networks. The module exchanges data with a Logix controller via a ControlNet bridge (eg. 1756-CNB) using Scheduled Class 1 communication or Unscheduled Class 3 / UCMM messaging. The size of the produced and consumed data is user-configurable up to 400 bytes.

The IO data can be accessed via Ethernet using either the PCCC or EtherNet/IP™ protocols. The former allows the module to emulate user-defined PLC5-type data files simplifying the data exchange with PanelViews. The module also provides a range of statistics on Ethernet and ControlNet to assist with fault finding.

A built-in webserver provides detailed diagnostics of system configuration and operation, including the display of ControlNet operation and communication statistics, without the need for any additional software.

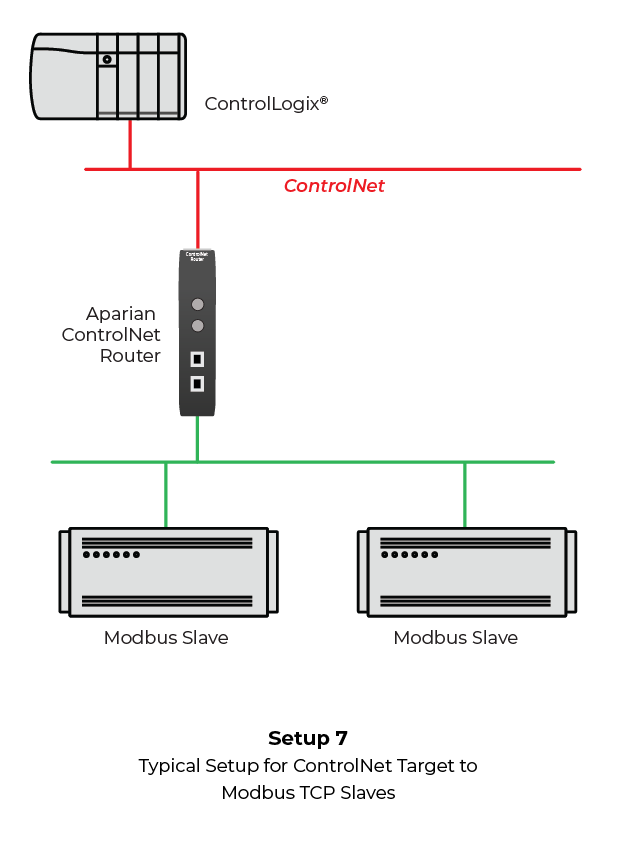

Architectures

Click on image(s) to enlarge
Drag with the mouse. Click for close.

Features and Benefits

  • ControlNet to Ethernet Interface
  • Connect Ethernet-only PanelViews to Logix via ControlNet
  • Supports Scheduled & Unscheduled ControlNet for PanelViews
  • Program Logix controllers via ControlNet
  • Advanced Diagnostics

Configuration

The Slate Configuration Utility software is used for configuration and troubleshooting of the module. The stand-alone configuration utility allows users to define the setup and configuration of the ControlNet Router module, connections with controllers and devices.

RSNetworx for ControlNet is used to schedule the ControlNet Router over the ControlNet network.

Specifications

EtherNet/IP Network

Specification

Description

Connector

RJ45

Conductors

CAT5 STP/UTP

ARP Connections

Max 40

TCP Connections

Max 40

CIP Connections

Max 10

Communication Rate

10/100 Mbps

Duplex Mode

Full / Half

Auto-MDIX Support

Yes

Embedded Switch

(2) Ethernet ports

ControlNet

Specification

Description

Connectors

(2) BNC connectors (ControlNet A and B).

Conductors

Quad shield RG-6 coaxial cable

Unscheduled Routed Client Max

40

Scheduled Connection

Max Input Size: 408 bytes (400 bytes mapped data) Max Output Size: 404 bytes (400 bytes mapped data)



PCCC

Specification

Description

Max PCCC Connections

10

Max PCCC Payload

1000 bytes

Hardware

Specification

Rating



Power Supply

Input: 10 to 36 VDC, (85 mA @ 24 VDC)

Power Consumption

2 W



Dimensions (H x W x D)

149.0 x 34.0 x 116.0 mm



Connector

3-way terminal



Conductors

24 to 18 AWG



Enclosure Rating

IP20, NEMA/UL Open Type



Temperature

-20 to 70 °C



Humidity

0 to 95% RH, non-condensing



Earth Connection

Yes, terminal based



Emissions

IEC 61000-6-4



ESD Immunity

EN 61000-4-2



Radiated RF Immunity

IEC 61000-4-3



EFT/B Immunity

IEC 61000-4-4



Surge Immunity

IEC 61000-4-5



Conducted RF Immunity

IEC 61000-4-6



Certifications

Certificate of RoHS Compliance 313.57 kB Last Modified 07/01/2020
ControlNet ODVA Certification 598.63 kB Last Modified 06/30/2020
