821 to 896 MHz 3 dBi Omnidirectional Bulkhead with N-jack Termination

A0803NJ-OBH

The A0803NJ-OBH omnidirectional bulkhead antenna is designed to work with ProSoft Technology radios. This low-profile antenna for outdoor or indoor applications features field diversity with both vertical and horizontal prolarization components. This gives the antenna diversity, frequency agility, low visibility, wide bandwidth and low angle radiation pattern.

Features and Benefits

  • Omnidirectional outdoor/indoor antenna applications
  • Supports 821 to 896 Mhz frequencies
  •  True field diversity design ensures uninterrupted transmissions



Compatibility

All antennas have been tested for compatibility with ProSoft Technology products. Please see the ProSoft Wireless Designer (PWD) configuration tool to assist you in choosing the best antenna for your application.

Specifications

Specification

Description

Frequency Range

821 to 896 MHz

Pattern

Omnidirectional

Gain

3 dBi

VWSR

< 2.1

Nomimal Impedance

50 Ohm

Polarization

Vertical and Horizontal

Half-Power Beamwidth (Elevationº x Azimuthº)

130º x 360º

Max Power

100 W

Connector

N-Female

Color

White

Height

2 3/4” (6.98 cm)

Diameter

1.438” (3.65 cm)

Weight

0.173 lbs  (78.4 g)



Antenna Patterns

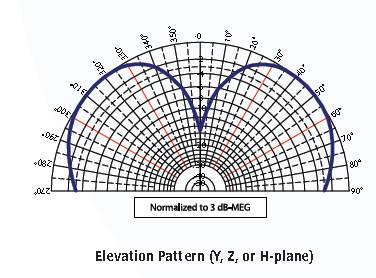

A0803NJ-OBH Pattern Elevation

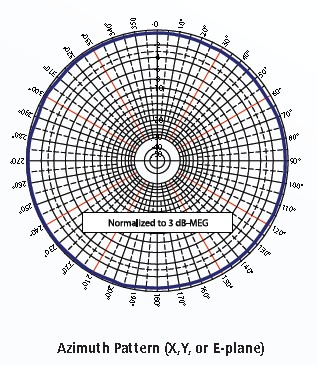

A0803NJ-OBH Pattern Azimuth
