Linux Development Modules for ControlLogix® and CompactLogix®
Computing solution that's not a PC
Example Applications:
- Sequence control of devices that communicate via TCP/IP sockets
- AGV positioning control
- Advanced alarm notification
- Optimization algorithms for weighing applications
- Whatever you can dream of to the limits of the hardware
Linux Development Module for CompactLogix
New to Linux?
What is a Linux Development Module?A computing device that sits in the backplane of either a ControlLogix® or CompactLogix® system and runs your compiled code. You develop your application in the C/C++ programming language. The module can communicate with the Ethernet and / or serial devices and to the PLC via the backplane interface. Access your data and make fast decisions. Enables OEMs and SIs to provide a proprietary solution without exposing your custom code. |
Linux Development Modules features:
|
IEC 61850 Solutions for Energy and Oil & Gas
IEC 61850 connectivity solutions
Do you need your Rockwell Automation® or Schneider Electric® PAC to interface with Intelligent Electronic Devices such as substation power monitors and relays over the IEC 61850 network? Does your SCADA system needs to harness data from non-smart devices, such as transformers and switchgear, via a ControlLogix® PAC?
We have your solution!
|
EtherNet/IP™ to IEC 61850 Client Gateways
|
|
|
Modbus® TCP/IP to IEC 61850 Client Gateways
|
|
|
IEC 61850 Server module for ControlLogix®
|
Bringing EtherNet/IP and PROFINET together
EtherNet/IP to PROFINET IO Device Gateway
ProSoft Technology’s EtherNet/IP™ to PROFINET® IO Device (Slave) gateways let you transfer data between EtherNet/IP™-based Rockwell Automation® or Schneider Electric® controllers to PROFINET®-based Siemens or GE controllers. There are two gateways in this family, a one Ethernet port version and a two Ethernet port version. The two ports allow the two protocols to reside on separate subnets. This allows a user to pass data between the two subnets without changing each device’s IP address to be on the same subnet.
 |
 |
| Reducing Configuration Time A setup tutorial Video is supplied on the included product DVD or can be viewed to the right. Configuration is simplified for Rockwell Automation® users through the use of an embedded EDS Add-On Profile (AOP). With an EDS AOP, there are less configuration parameters to enter than when using a generic profile, reducing commissioning time and potential errors. ProSoft Discovery Service is a utility included with the product that allows your PC to find your gateway, and change its default IP address, without it being on the same subnet as your PC. |
|
Want More Information? |
| Reducing Unscheduled Downtime Gateway diagnostic data can be transferred to PAC/PLC tags, allowing you to start troubleshooting communication issues quickly using your PAC/PLC’s configuration software or HMI. The gateway comes with an SD Card Slot (Industrial SD Card optional) for storing your gateway’s configuration. This can be used for Disaster Recovery. Optimize Your Ethernet Bandwidth Our EtherNet/IP driver supports multiple IO connections enabling you to set different RPIs for control and diagnostic data. This allows you to send low priority data at slower rates. |
Other SolutionsDo you have an OEM piece of equipment and don’t have access to the Siemens® programming software, or maybe you don’t want to modify the Siemens® PAC/PLC code? Siemens® S5 and S7 controllers can also speak Siemens Industrial Ethernet. We have products that can transfer data without having to change the Siemens® PAC/PLC code. In-chassis solutions for ControlLogix® Gateway solutions for EtherNet/IP™-based controllers Don’t want to modify the code in your Rockwell Automation® ControlLogix® PAC/PLC or the Siemens PAC/PLC? We have products that can transfer data without having to change the Rockwell Automation® code. |
In-Chassis PROFIBUS interface for the Cost of a Gateway
In-Chassis PROFIBUS interface modules for CompactLogix
Master Features:
|
|
Slave Features:
|
|
Click for PROFINET solutions
PROFINET to Modbus Serial and Modbus TCP/IP Gateways
Bringing PROFINET & Modbus Together
ProSoft Technology’s PROFINET® to Modbus® or Modbus® TCP gateways allow your PROFINET-based Siemens® or GE controller to connect to any Modbus or Modbus TCP-compatible device. With millions of PROFINET nodes worldwide and even more Modbus/Modbus TCP devices, the need for a gateway that will allow these two widely used protocols to communicate is self-evident. ProSoft offers four versions to give you the best solution for your application.
Modbus TCP/IP Two-Port to PROFINET Device Gateway
|
Have an OEM piece of equipment and do not want to change all the IP addresses just to have it communicate with your current PLC? This version offers bi-directional data transfers between a PROFINET Controller and Modbus TCP devices. The dual Ethernet ports allow you to pass data between Modbus TCP and PROFINET devices that are on different subnets. |
Modbus TCP/IP to PROFINET Device Gateway
|
Are your devices all on one subnet? This version offers bi-directional data transfers between a PROFINET Controller and Modbus TCP networks. Our Modbus TCP driver has multiple clients and servers to support many different types of application. |
Modbus Serial Four-Port to PROFINET Device Gateway
|
Are your Modbus devices on several Modbus networks? This version offers bi-directional data transfers between a PROFINET Controller and Modbus serial (RTU and ASCII) devices. This four-port Modbus gateway is perfect for applications that need data from several Modbus serial networks. |
Modbus Serial to PROFINET Device Gateway
|
Need to connect to just one serial network? This version offers bi-directional data transfers between a PROFINET Controller and Modbus serial (RTU and ASCII) devices. The single serial port can be configured as either a Modbus master or slave. |
Click for EtherNet/IP to PROFINET solutions
EtherNet/IP to PROFINET Controller Gateway
Taking Control of your PROFINET Devices

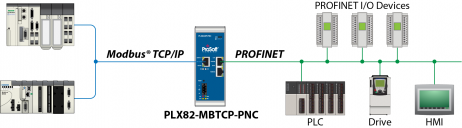

There are many industrial protocols, but three giants are especially prevalent in automation: EtherNet/IP™, PROFINET, and Modbus® TCP/IP. Your operation likely includes a mix of devices that use these protocols and others – and it’s up to you to establish communication between them. With gateways connecting EtherNet/IP controllers to PROFINET I/O, and PROFINET I/O to Modbus TCP/IP controllers, you can secure high-speed communications for your facility – and benefit in other ways as well.
PROFINET and EtherNet/IP or Modbus TCP/IPOther PROFINET Gateway Solutions
PROFINET Controller Gateways for EtherNet/IP and Modbus TCP/IP
|
EtherNet/IP multiple I/O connection support:
Diagnostic data:
Two isolated Ethernet ports:
|
