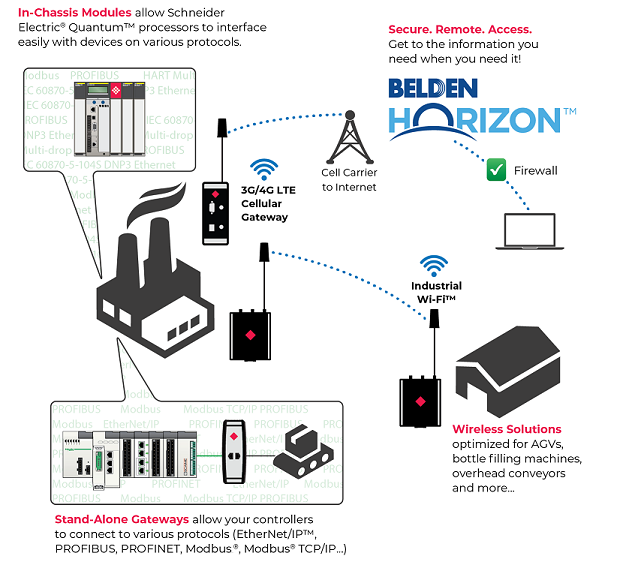

Communication Solutions for Schneider Electric

PLX31-MBTCP-SIE

ProSoft Technology’s Modbus® TCP/IP to Siemens Industrial Ethernet gateway allows high-speed bi-directional data transfers between Modbus® TCP/IP controllers and Siemens® S7-400, S7-300, S7-200, S7-1200, and S7-1500 PACs.

In addition, the gateway includes several features, including data prioritization, that allow for simplified integration, reduced commissioning time and optimized performance.

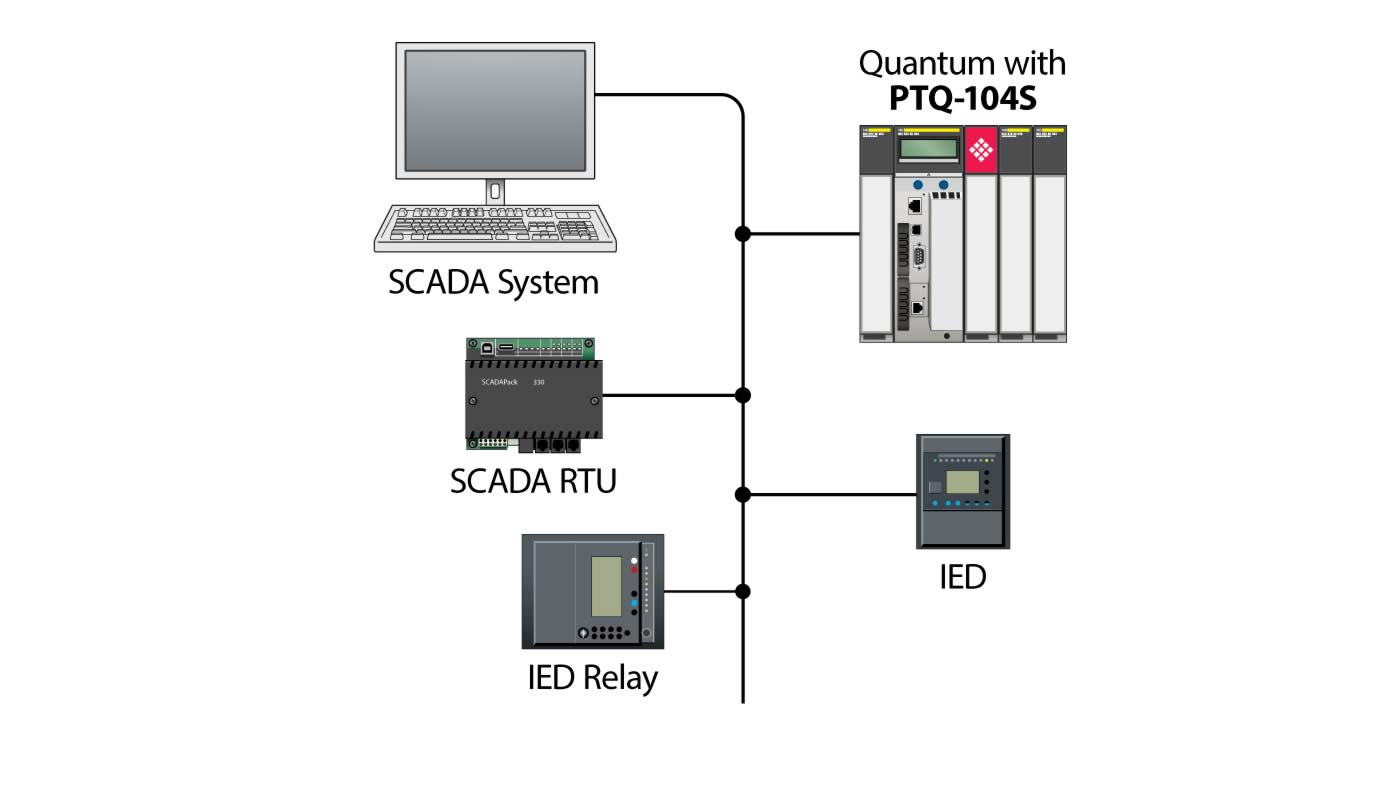

PTQ-104S

The IEC 60870-5-104 Server Communication Module allows compatible processors to interface easily with IEC 60870-5-104 protocol-compatible hosts. Developed under license from Schneider Electric, the module incorporates proprietary backplane technology that enables powerful data access to the Quantum processor.

The PTQ-104S module acts as an input/output module between the IEC-60870-5-104 Ethernet network and the processor. Data transfer between the module and the processor is asynchronous from the actions on the network. Databases are defined by the user for the module to hold data as required by the protocol.

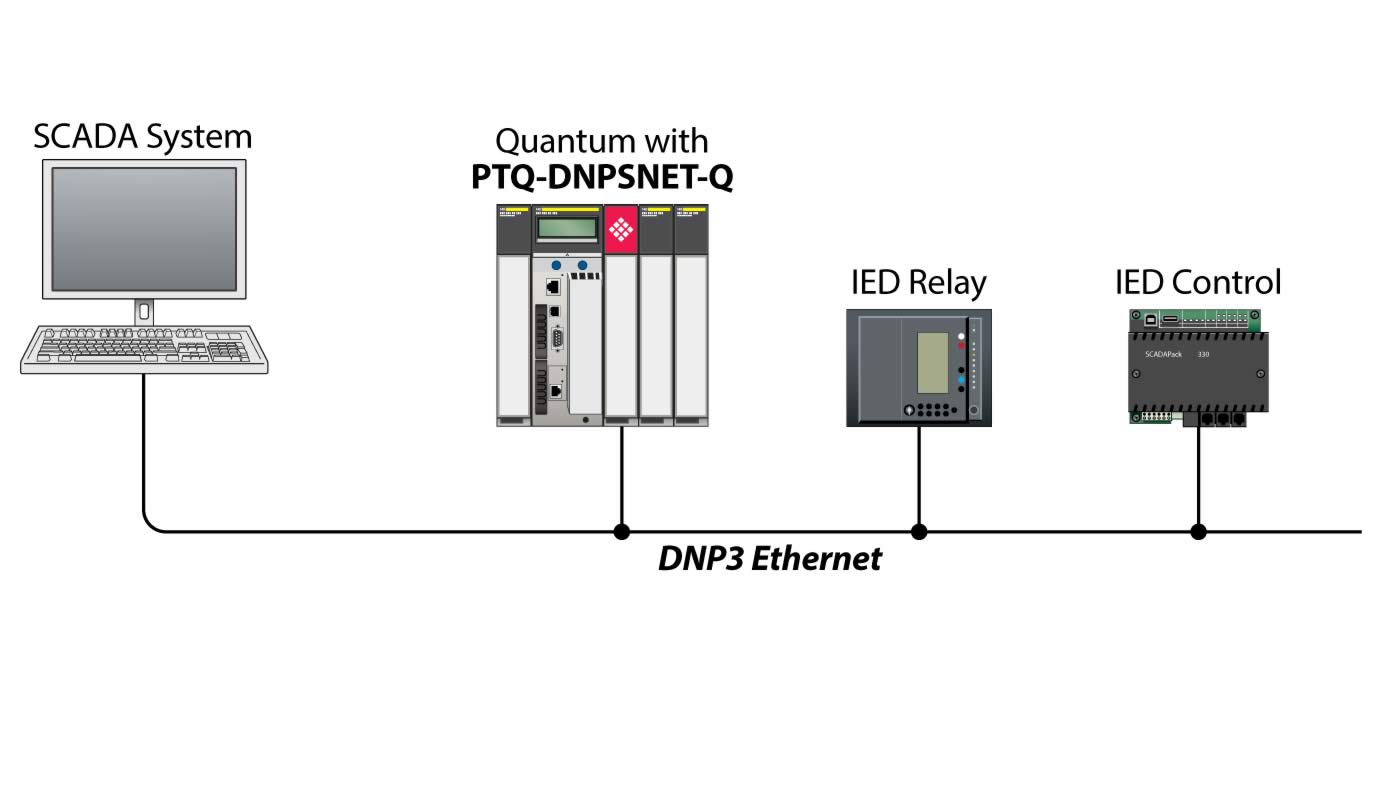

PTQ-DNPSNET-Q

The DNP 3.0 Server over Ethernet with Quality Flag supports the implementation of the DNP 3.0 (Distributed Network Protocol) over Ethernet, allowing Quantum processors to easily communicate with host systems supporting the protocol. The module supports DNP Subset Level 2 features and some Level 3 features. The addition of the Quality Flag helps to insure data reliability for critical or time sensitive communication.

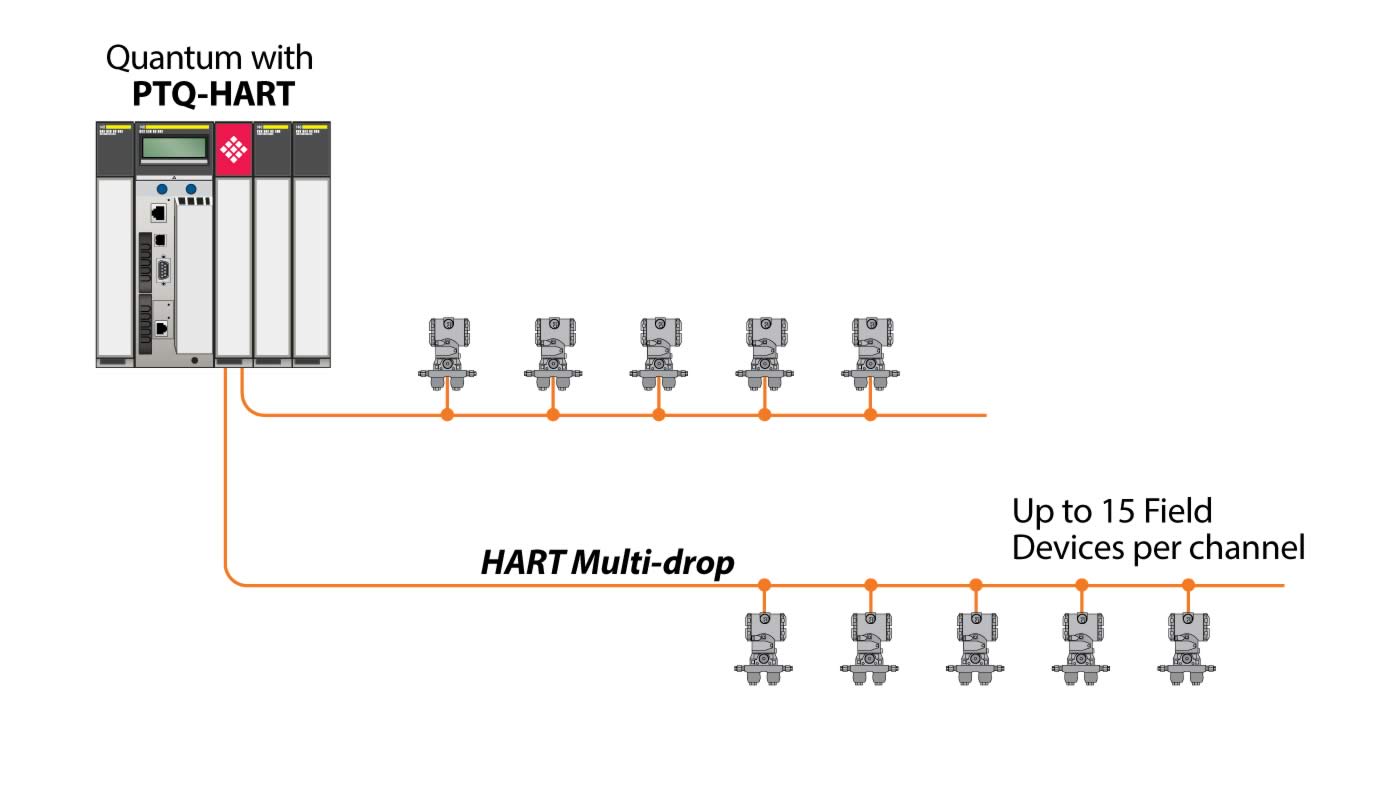

PTQ-HART

The HART Multi-drop Network Interface Module is a backplane-compatible module that allows Quantum processors to interface easily with HART compatible devices. Devices commonly supporting the protocol include pressure, temperature, flow transmitters, as well as other similar instruments commonly found in the process (and other) industry.

HART® is a registered trademark of the HART Communication Foundation

PTQ-PDPMV1

The PROFIBUS DP Master Network Interface allows Quantum processors to interface easily with slave devices supporting PROFIBUS DP V0 OR V1. The module acts as an input/output module between the PROFIBUS network and the processor. PROFIBUS is one of the most used protocols in industrial automation. Applications can be found in power and distribution, petrochemical, water and gas, SCADA and DCS.

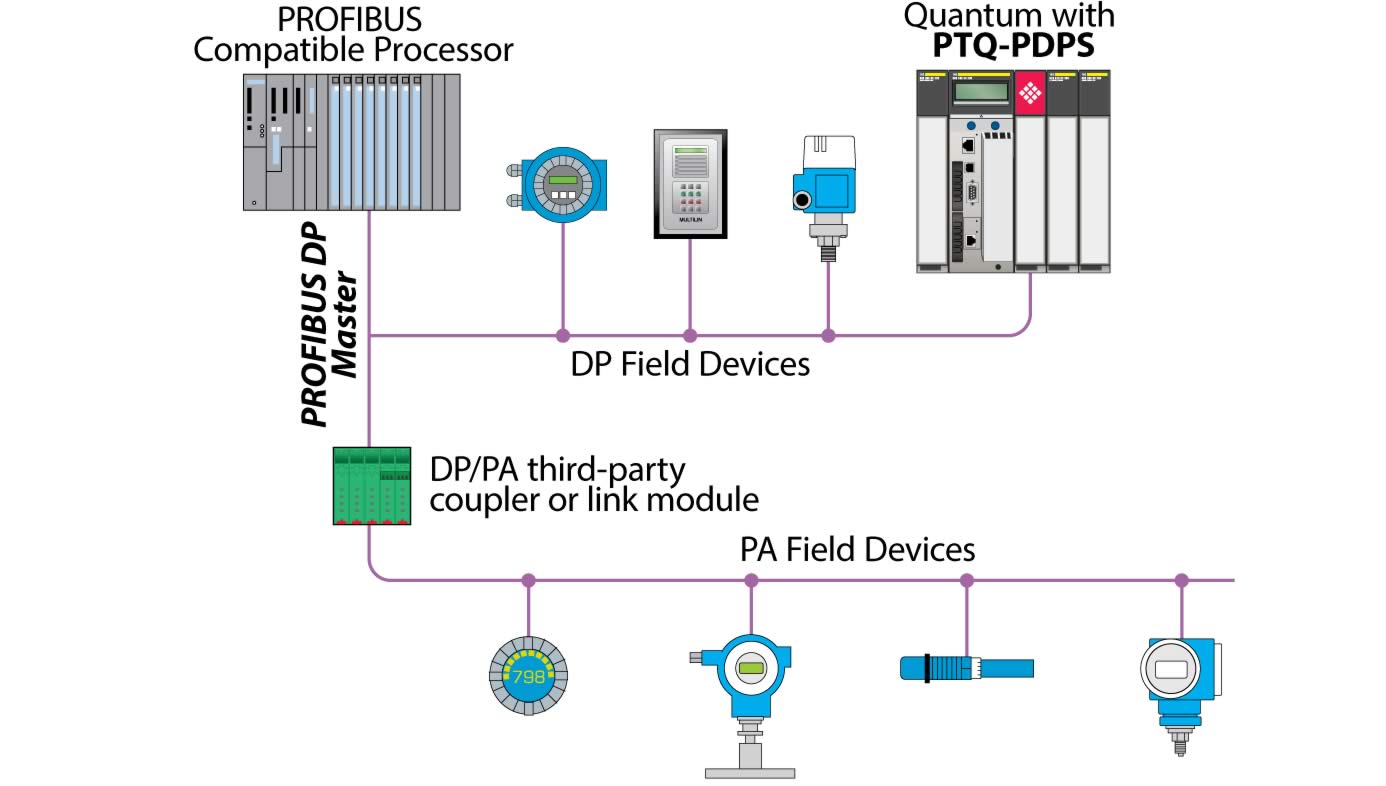

PTQ-PDPS

The PROFIBUS DP Slave module is a powerful communication interface for Unity and Quantum platform processors that allows you to interface easily with a PROFIBUS DP Master device. Developed under license from Schneider Electric, the module incorporates proprietary backplane technology that enables powerful data exchange with Unity and Quantum processors.

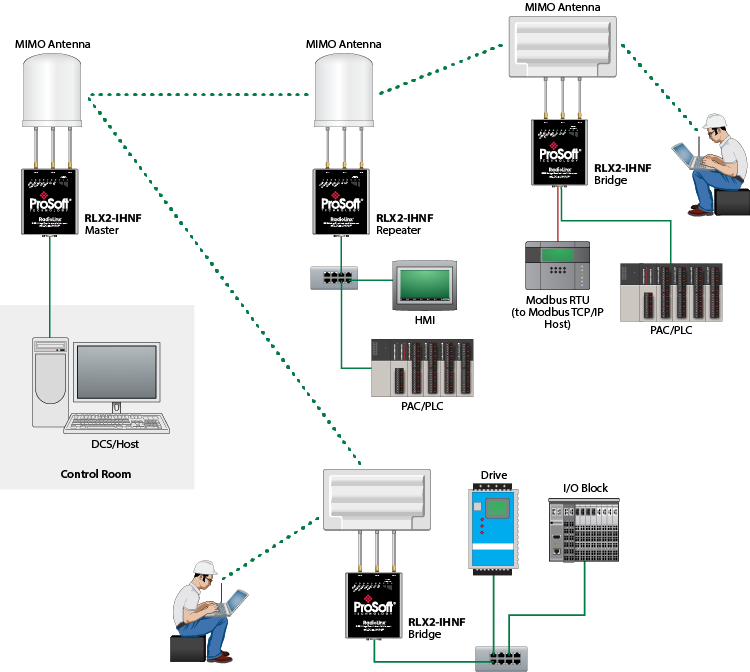

RLX2-IHNF-E

The ProSoft Technology Fast Industrial Hotspot (RLX2-IHNF) provides secure wireless solutions for plant-floor, SCADA automation, process control systems and mobile worker Wi-Fi infrastructure. It operates in the 2.4 or 5 GHz bands, including DFS channels, and is good for applications up to 2 mi. / 3.2 km. The radio features Ultra-Fast access point switchover times of less than 10 ms, which is ideal for applications such as automated storage-retrieval systems, automotive skillet lines, and bottle filling machines.

The radio will be appreciated by both sides – OT and IT. Your OT personnel will like the radio’s EtherNet/IP embedded object and Modbus agent support, which allows them to get diagnostic data into their PLC immediately, where they can analyze and act upon data, optimizing your resources. IT departments will appreciate the radio’s SNMP support.

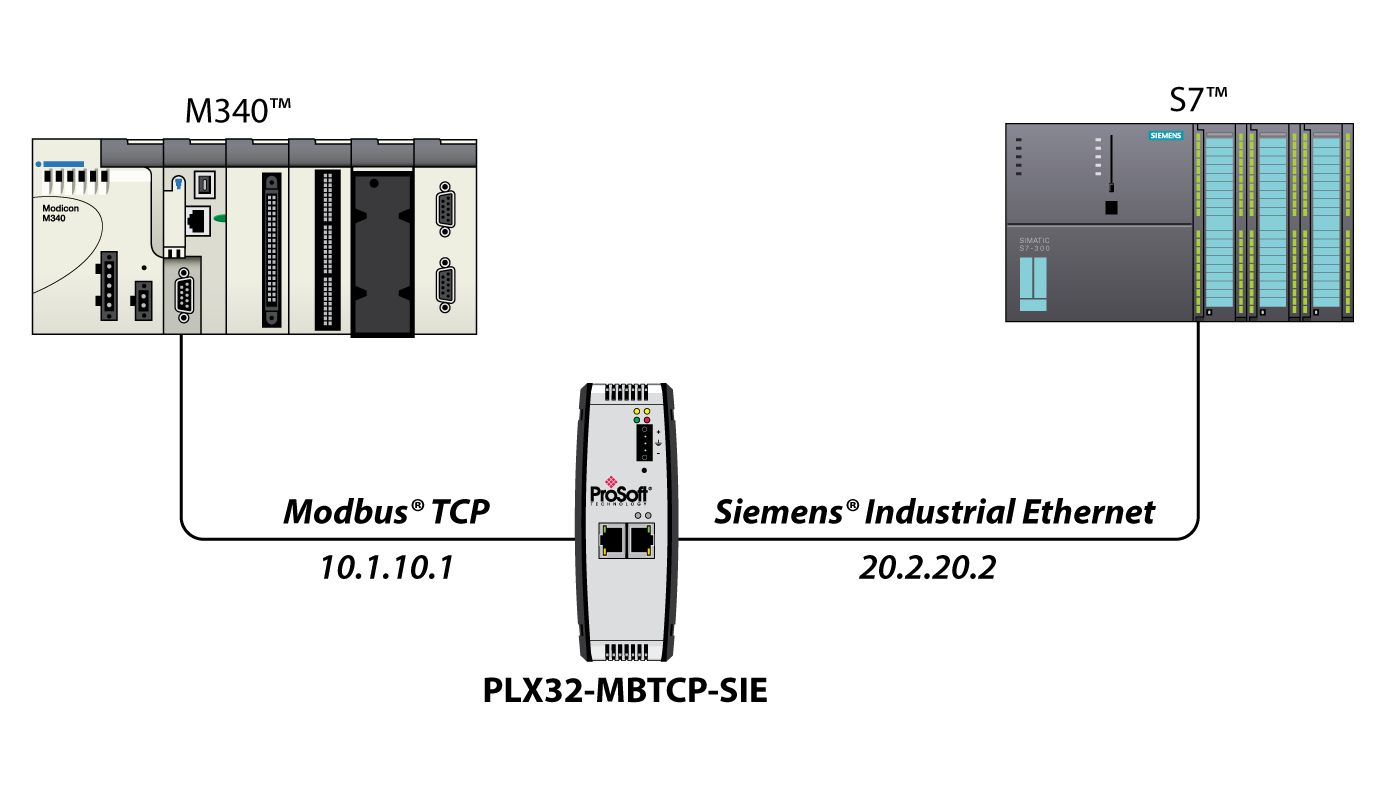

PLX32-MBTCP-SIE

ProSoft Technology’s Modbus® TCP/IP to Siemens Industrial Ethernet gateway allows high speed bi-directional data transfers between Schneider Electric® PACs and Siemens S7 and S5 PACs.

Two ports allow each protocol to reside on separate subnets, allowing you to pass data between the two subnets without changing each device’s IP address.

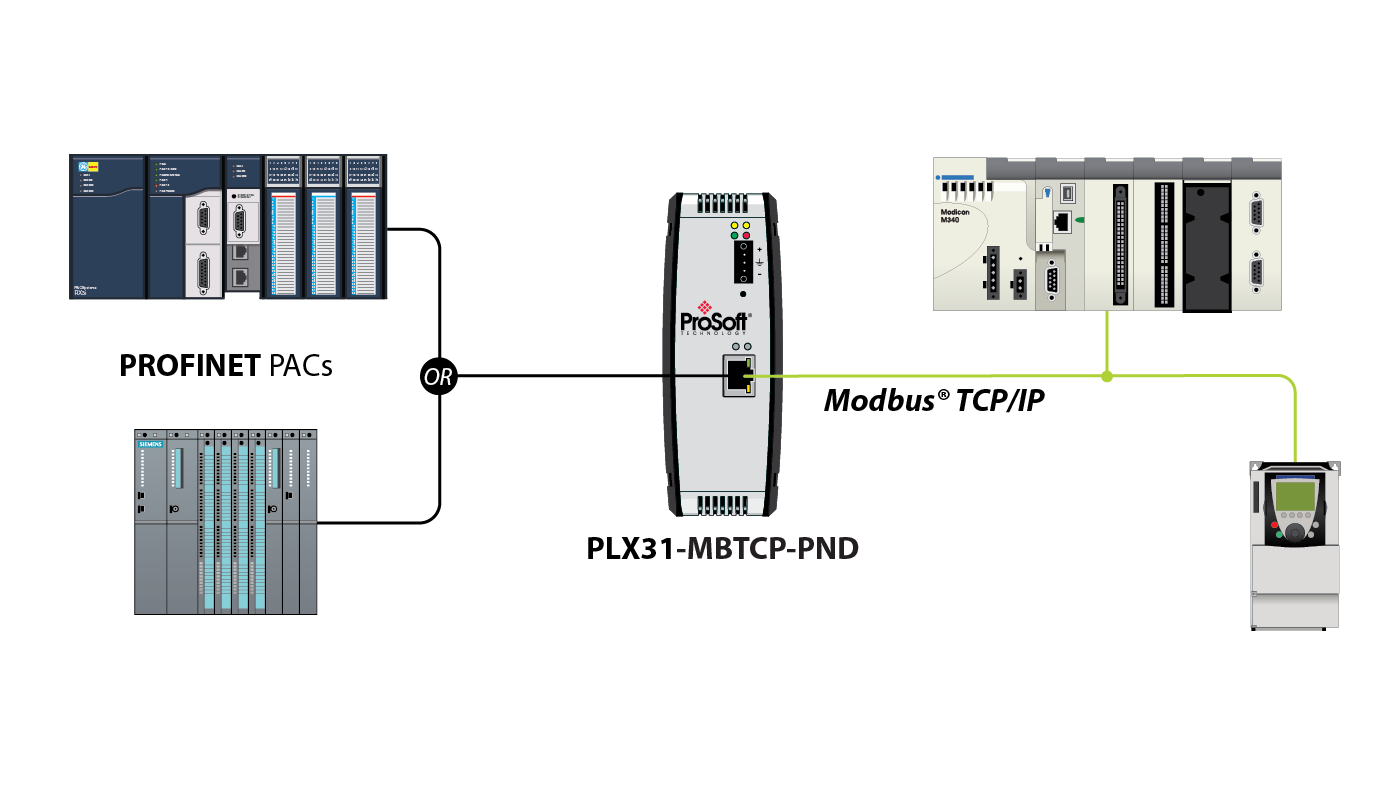

PLX31-MBTCP-PND

The Modbus TCP/IP to PROFINET device gateway offers bi-directional data transfer between a PROFINET Controller and Modbus TCP/IP networks. The Modbus TCP/IP driver uses multiple clients and servers for faster data throughput. The PROFINET driver operates as a PROFINET device (slave).

The PLX31-MBTCP-PND gateways are stand-alone DIN-rail mounted units that provide one Ethernet port for communications, remote configuration, and diagnostics. The onboard SD Card slot (SD card optional) is used for storing configuration files that can be used for recovery, transferring the configuration to another gateway, or general configuration backup.

PLX32-MBTCP-PND

The Modbus TCP/IP to PROFINET device gateway offers bi-directional data transfer between a PROFINET Controller and Modbus TCP/IP networks. The Modbus TCP/IP driver uses multiple clients and servers for faster data throughput. The PROFINET driver operates as a PROFINET device (slave).

The PLX32-MBTCP-PND gateways are stand-alone DIN-rail mounted units that provide two Ethernet ports for network communications, remote configuration, and diagnostics. The onboard SD Card slot (SD card optional) is used for storing configuration files that can be used for recovery, transferring the configuration to another gateway, or general configuration backup.

PLX31-EIP-PND

The EtherNet/IP™ to PROFINET® IO Device (slave) gateway offers bi-directional data transfers between EtherNet/IP™ controllers and a PROFINET® IO controller. The EtherNet/IP™ Driver supports I/O connections for guaranteed data delivery or Message instructions to send data to/from the PACs. The gateway supports 1440 bytes of input data and 1440 bytes of output data for larger applications.

In addition, the gateway’s multiple I/O connections, allow you to set different RPIs for control data and module diagnostics, enabling you to optimize your Ethernet bandwidth.

A conformal coating option is available for this product.

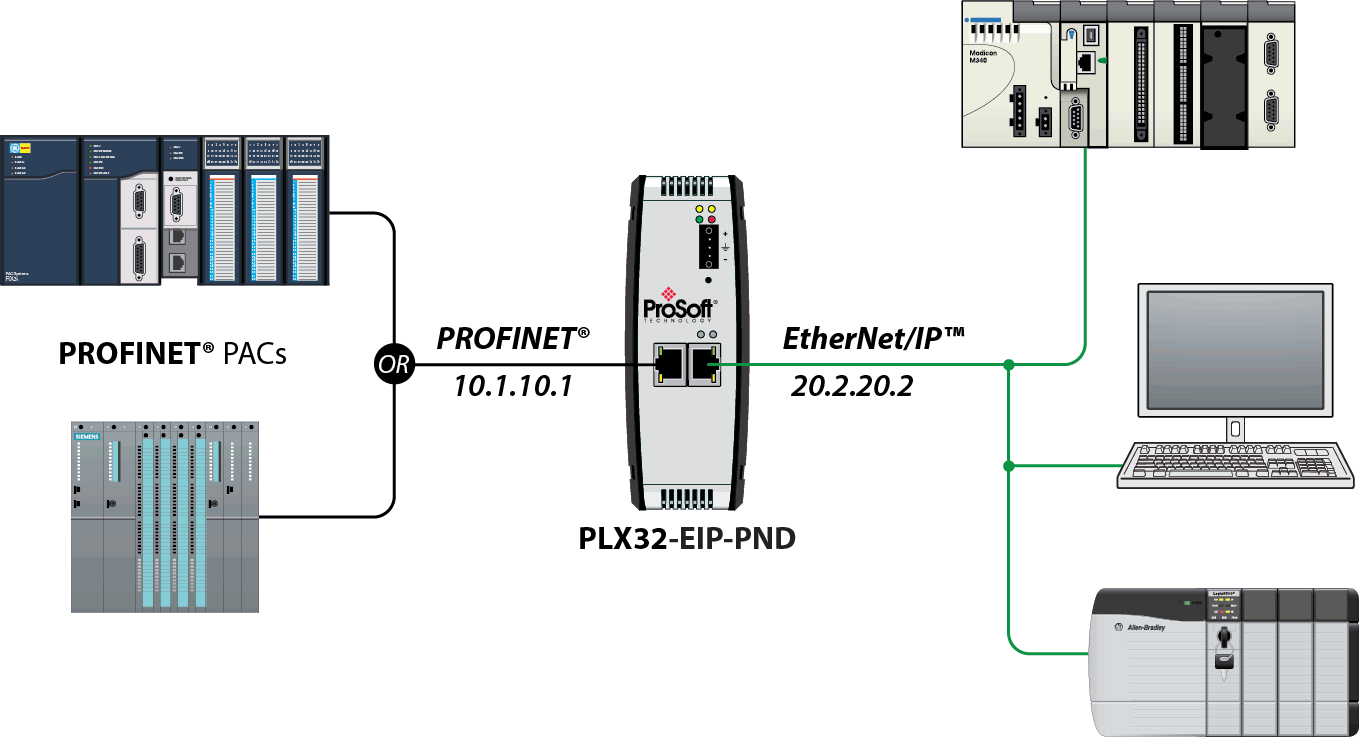

PLX32-EIP-PND

The EtherNet/IP to PROFINET device gateway offers bi-directional data transfers between a PROFINET Controller and EtherNet/IP networks. The PLX32-EIP-PND gateway is a stand-alone DIN-rail mounted unit that provides two Ethernet ports, with each port using a different subnet.

The onboard SD Card slot (SD card optional) is used for storing configuration files that can be used for recovery, transferring the configuration to another gateway, or general configuration backup. The EtherNet/IP Driver uses Class 1 I/O connections or Class 3 Message instructions. The PROFINET driver operates as a PROFINET Class A device.

A conformal coating option is available for this product.

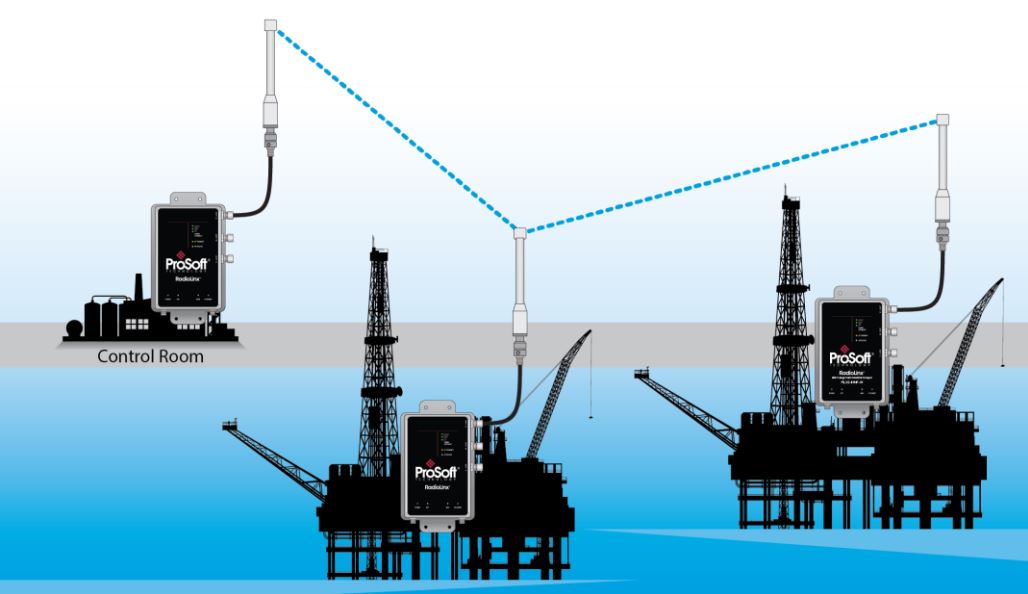

RLX2-IHNF-W

The ProSoft Technology Weatherproof IP67 Fast Industrial Hotspot (RLX2-IHNF-W) is designed for harsh environments and features an IP66/67 rating. It is water-tight for use in extreme weather applications such as offshore oil rigs, and dust-tight for use in mining applications. It operates in the 2.4 or 5 GHz bands, including DFS channels, and is good for applications up to 2 mi. / 3.2 km.

The Hotspot supports Access Point, Repeater, and Client modes. The 802.11n technology delivers fast data rates up to 300 Mbps. This provides excellent packet- per-second performance and robust communications in rugged industrial environments. The 802.11n MIMO & Channel bonding supports demanding wireless applications such as Ethernet I/O and high-resolution video.

The included IH Browser configuration and monitoring software allows the user to view network topology, assign IP addresses, monitor network diagnostics, and update radio firmware. The optional OPC Diagnostic Server is ideal for managing long-range wireless SCADA networks.

RLX2-IHNF-WC

The Weatherproof IP67 Fast Industrial Hotspot is UL Class 1 Division 2 certified and features an IP66/67 rating. It is water-tight for use in extreme weather applications such as offshore oil rigs, and dust-tight for use in mining applications. It operates in the 2.4 or 5 GHz bands, including DFS channels, and is good for applications up to 2 mi. / 3.2 km. The radio features Ultra-Fast access point switchover times of less than 10 ms, which is ideal for applications such as automated storage-retrieval systems, automotive skillet lines, and bottle filling machines.

The radio will be appreciated by both sides – OT and IT. Your OT personnel will like the radio’s EtherNet/IP embedded object and Modbus agent support, which allows them to get diagnostic data into their PLC immediately, where they can analyze and act upon data, optimizing your resources. IT departments will appreciate the radio’s SNMP support.

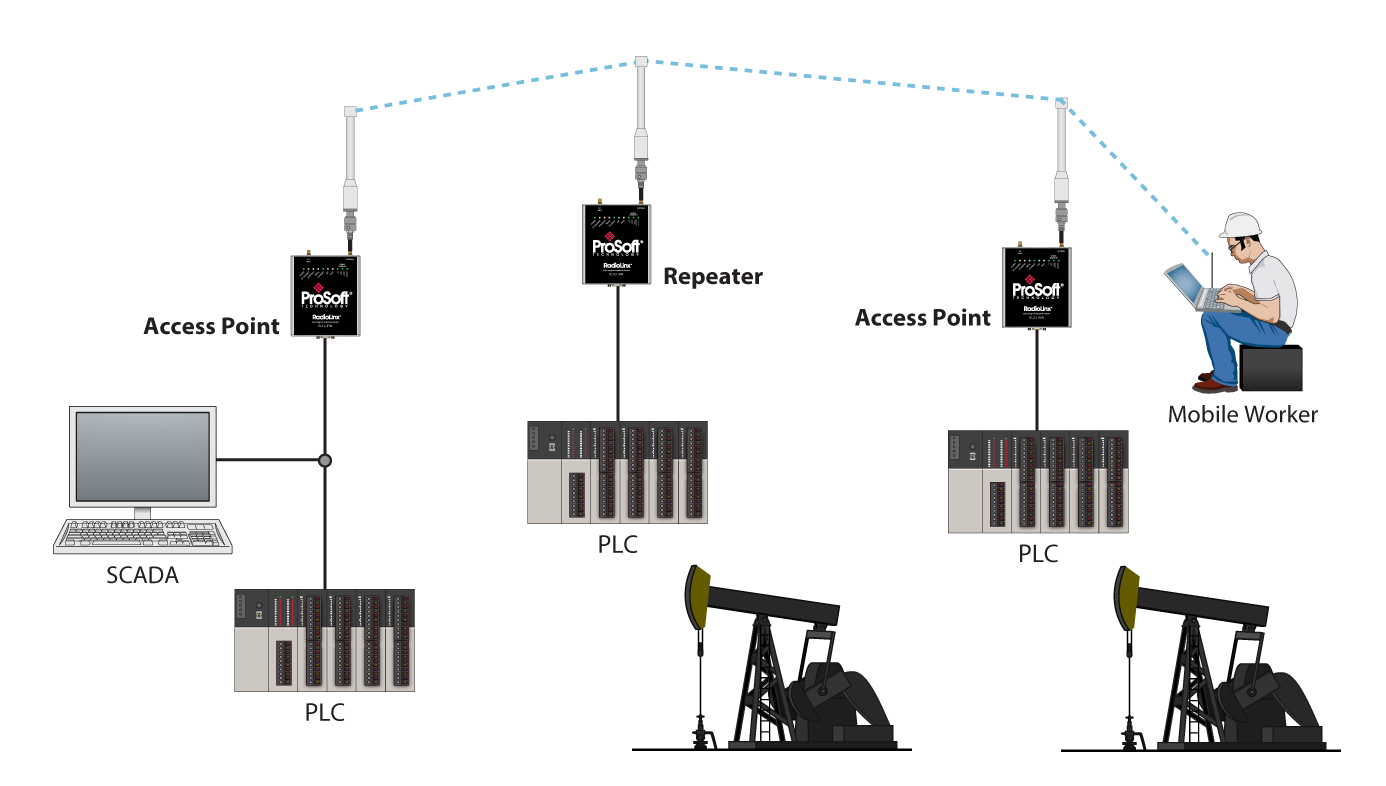

RLX2-IHG-A

The ProSoft Technology 802.11g High Power Industrial Hotspot™ (RLX2-IHG) is a high-speed wireless Ethernet radio for applications up to 10 mi. / 16 km. The RLX2-IHG uses the 2.4 GHz band and supports a data rate up to 54Mbps. The Hotspot supports Access Point, Repeater, Bridging, and Client modes. The RLX2-IHG offers fast roaming, hazardous location certifications, as well as vibration and shock resistance.

The included IH Browser configuration and monitoring software allows the user to view network topology, assign IP addresses, monitor network diagnostics, and update radio firmware.

RLX2-IHA-A

The 802.11a High Power Industrial Hotspot™ (RLX2-IHA) is a high-speed wireless Ethernet radio for long range applications up to 5 mi. / 8 km. The RLX2-IHA uses the 5 GHz band and supports a data rate up to 54 Mbps. The radio features Ultra-Fast access point switchover times of less than 10 ms, which is ideal for applications such as automated storage-retrieval systems, automotive skillet lines, and bottle filling machines.

The radio will be appreciated by both sides – OT and IT. Your OT personnel will like the radio’s EtherNet/IP embedded object and Modbus agent support, which allows them to get diagnostic data into their PLC immediately, where they can analyze and act upon data, optimizing your resources. IT departments will appreciate the radio’s SNMP support.

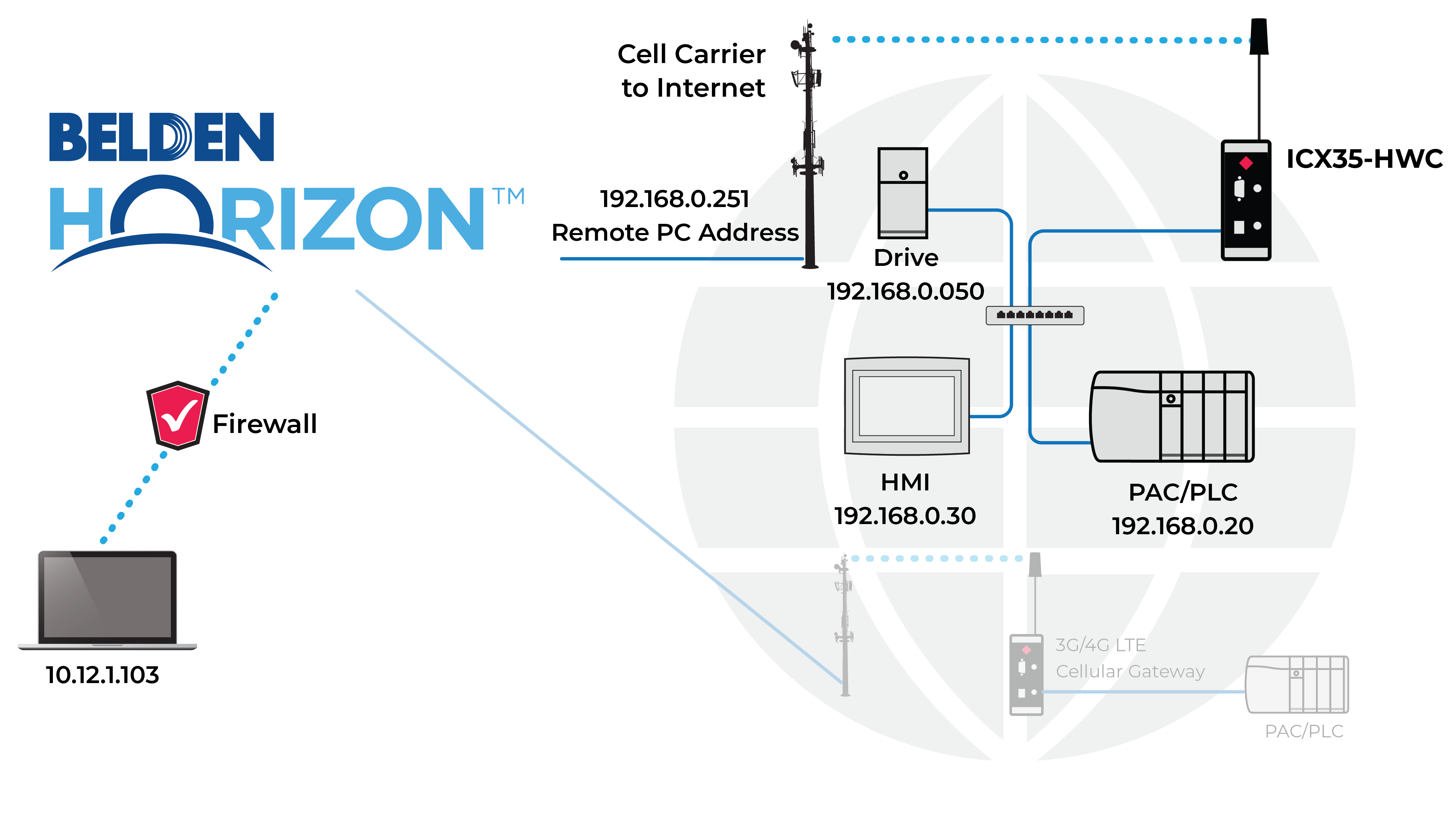

ICX35-HWC

Important Notice: ICX35-HWC-E has reached "Limited Availability" status.
Click here for more information.

The ICX35-HWC Industrial Cellular Gateway is used for any remote connectivity applications like remote access, SCADA connectivity to remote sites, or M2M communications.

It is the ideal communications solution for system integrators and OEMs that need to monitor devices that are in hard-to-reach spots. With the ICX35-HWC, the user can monitor and troubleshoot devices from anywhere in the world over 4G LTE cellular connections, with fallback to 3G or by using the on-board Ethernet port as a WAN/LAN port.

Ubiquitous and reliable cellular coverage allows the ICX35-HWC to be used to connect geographically dispersed sites for SCADA and telemetry applications.

The ICX35-HWC uses a multi-layered approach (Defense-In-Depth) to security. These include 256-bit AES encryption and one-time-use tunnel credentials, to name a few. It supports SMS for alarm management.

The ICX35-HWC can also be monitored through Belden Horizon™. This is Belden’s IT-secure and OT-friendly cloud-native platform for the Industrial Internet of Things. This service can be accessed anytime, anywhere in the world, offering the user a secure and intuitive Web interface to monitor their automation devices in real time. Learn more about Belden Horizon.

The gateway supports OpenVPN connectivity to dual servers for redundancy.

Check out successful applications with that product monitoring: mining equipment, natural gas usage, electrical equipment, roadway signs, and portable toilets!

On The Go

Belden Horizon Lite App

Download the Belden Horizon Lite App on the App Store.

^{App Store is a trademark of Apple Inc.}

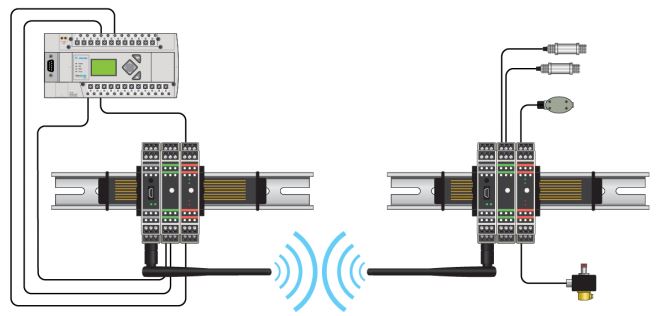

BM-xx00-RM1K

How many times do you need to get a few points of digital or analog inputs and outputs from point A to point B, but can’t justify the cost of running the wires? The Radio Kit is a replacement for hardwired I/O that is simple to deploy. The Kit requires no programming – just wire strippers and a screwdriver. There is no communication protocol to interpret.

The radios are paired and secured at the factory, so there are no settings or configurations to figure out. It is bi-directional, so digital and analog signals can be sent in both directions between two connected I/O stations. Inputs on one module are simply replicated as outputs on the corresponding module. Our wireless I/O makes use of the unlicensed ISM band at either 868 MHz, 900 MHz, or 2.4 GHz (USA only). The radios can send I/O up to 4 miles for the 900 MHz or 1 mile for the 868 MHz and 2.4 GHz models. Each radio pair can connect up to 16 I/O modules, more than enough for most applications.

I/O Modules

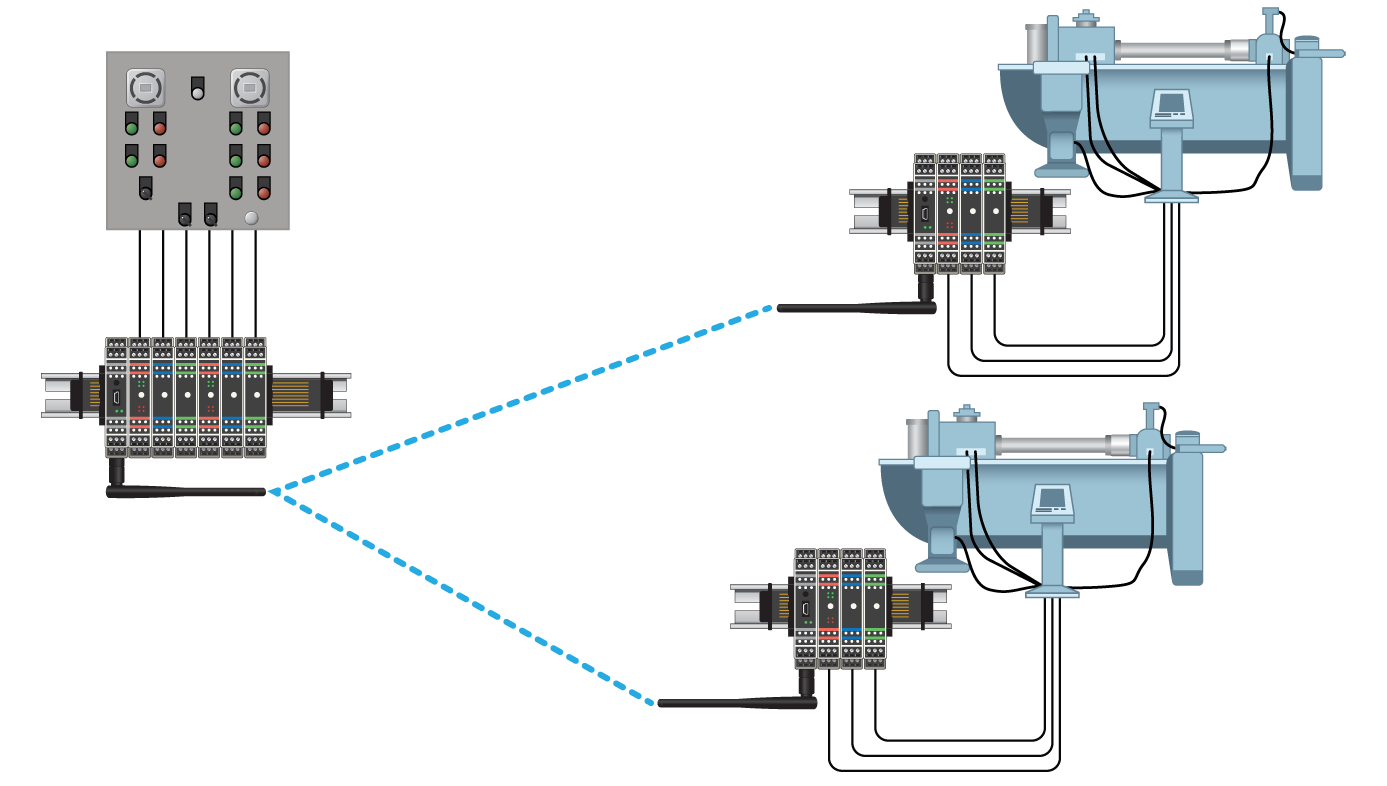

BM-xxxx-GM1K

ProSoft Technology’s Multi-Point Wireless I/O system allows you to monitor I/O from multiple locations without running long wires. This secure, reliable system is scalable and deploys quickly, allowing you to skip trenching, conduit, and permits. Three module types: Analog 0-10 V, Analog 4-20 mA, and Digital/Discrete – give you the freedom to customize your setup based on your environment and needs.

The system can be used in different methods: I/O to I/O, I/O to Modbus serial communications, and Modbus® serial to Modbus Serial communications. This peer-to-peer system can move data from the I/O or Modbus devices to any other node. The digital input module can act as a counter and send the accumulated value to another location.

I/O Modules

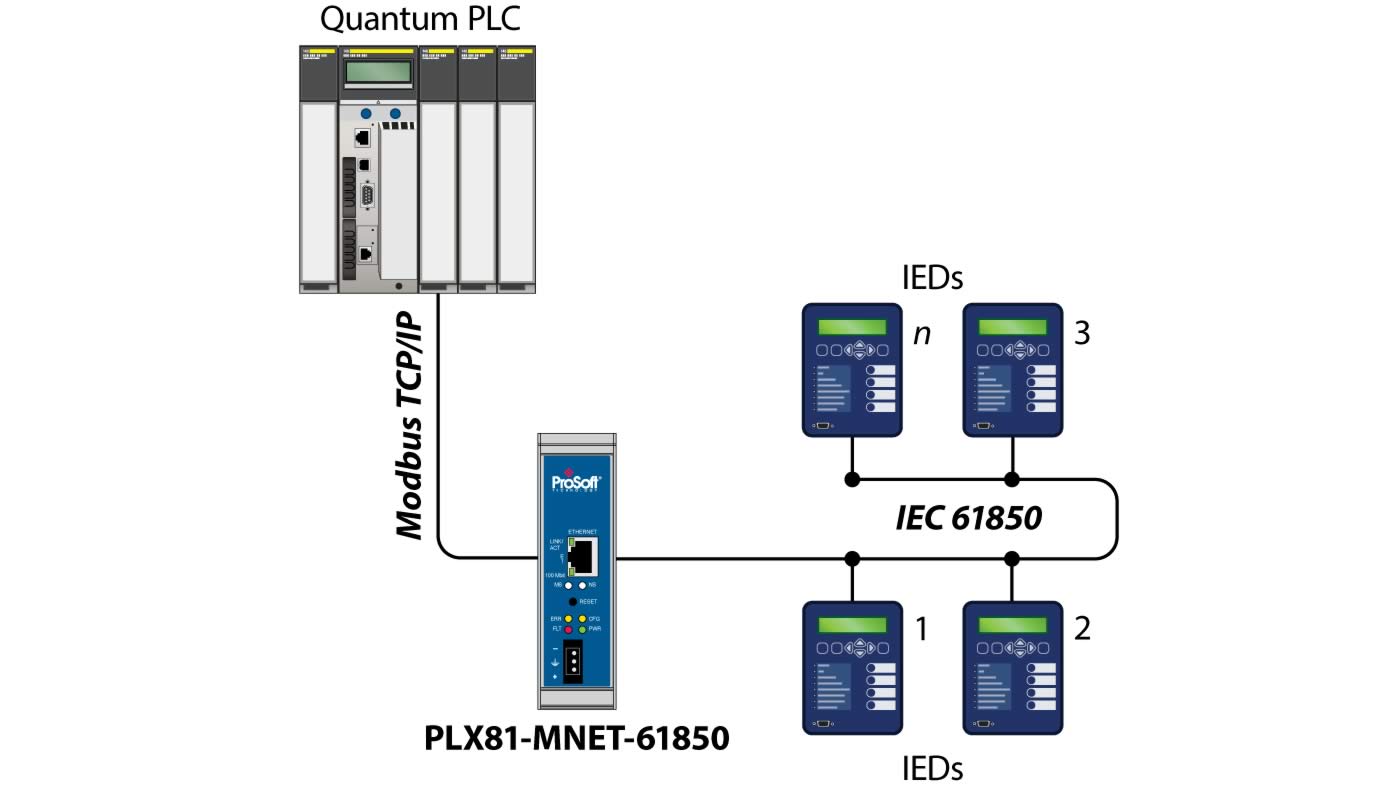

PLX81-MNET-61850

The Modbus TCP/IP to IEC 61850 gateway enables communication between the Intelligent Electronic Devices (IEDs) on an IEC 61850 network and Programmable Logic Controllers (PLCs) or Programmable Automation Controllers (PACs) on a Modbus TCP/IP network.

The configuration utility software provided with the gateway uses IED configuration files to import complex IEC 61850 data structures. The utility creates Variable files and Function Block files for import into Unity Pro projects for Quantum or M340 processors.

IEC 61850 is the international standard that defines the hardware and communication requirements for all devices within substation automation. The standardized naming conventions imposed by the IEC 61850 standard improves interoperability between systems provided by diverse manufactures or created by multiple system integrators.
